Install in an afternoon.

Color Bridge installs in under 60 minutes for a typical pergola. LNT Track in under 90 minutes. No electrician required.

Before you start

What you need

Track — Color Bridge or LNT — sized to your space

Power-on connector — Included with kits; sold separately otherwise

Driver — 36W for runs under 6m, 72W for 6m+

GDJ mounting fixings — Screw-in standoffs for Color Bridge

End caps — Finishing detail (Color Bridge only)

Fixtures — Your choice

Drill + appropriate bit — For surface mounting

Tape measure

Pencil

That's it. Notice what's not on this list: electrician, junction box, conduit, permits.

Step by step

Six steps, start to glow.

01

Plan your layout

Measure the full run end to end, find the surfaces you'll mount to, and place your fixtures on paper first. Five minutes here saves an hour later.

Sketch it once. Walk it at dusk before you commit.

02

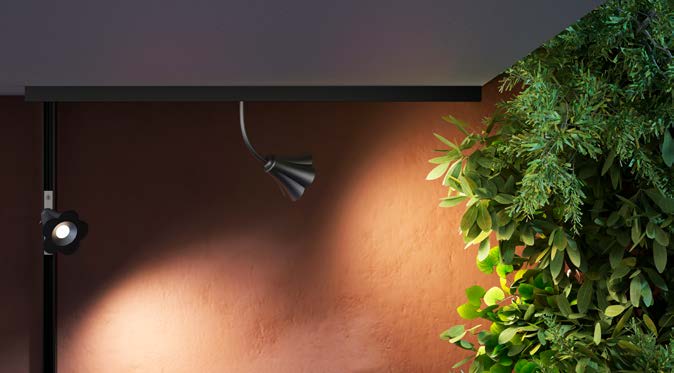

Mount the track

For Color Bridge, screw in GDJ mounting fixings every 30cm so the cable floats clean off the surface. For LNT, click mounting brackets to the wall every 50cm and seat the rail into them.

Level the first and last anchor — the rest follow the line.

03

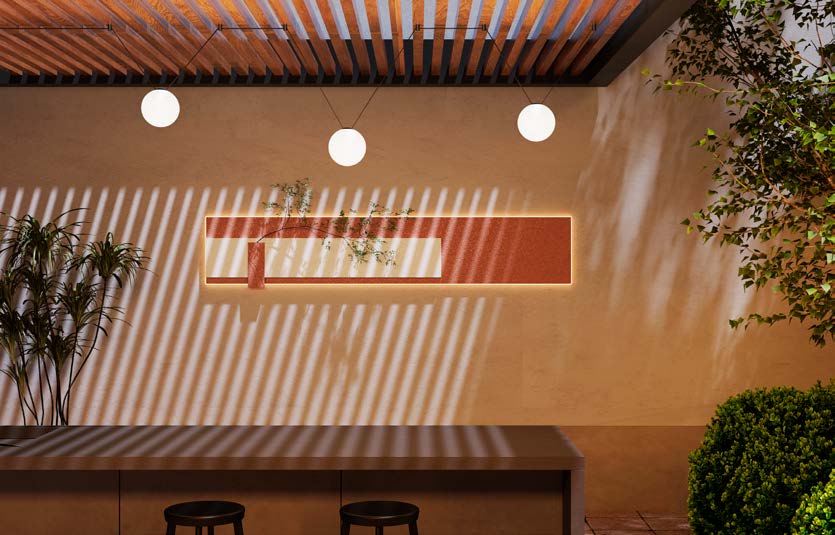

Bend & shape — or section & attach

Color Bridge bends by hand around corners and curves — keep every bend above a 300mm radius. LNT sections join with click-in adapters at any angle for a crisp architectural line.

The silicone holds its shape — no clips needed to keep a curve.

04

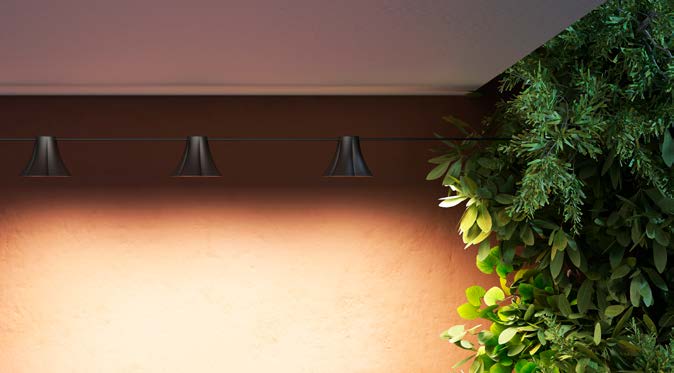

Clip your fixtures

Every fixture clips directly onto the track and taps the 24V line through its built-in connector. No tools, no separate GDJ stand-off, no exposed wiring.

Hear the click — that's the connector seating onto the conductors.

05

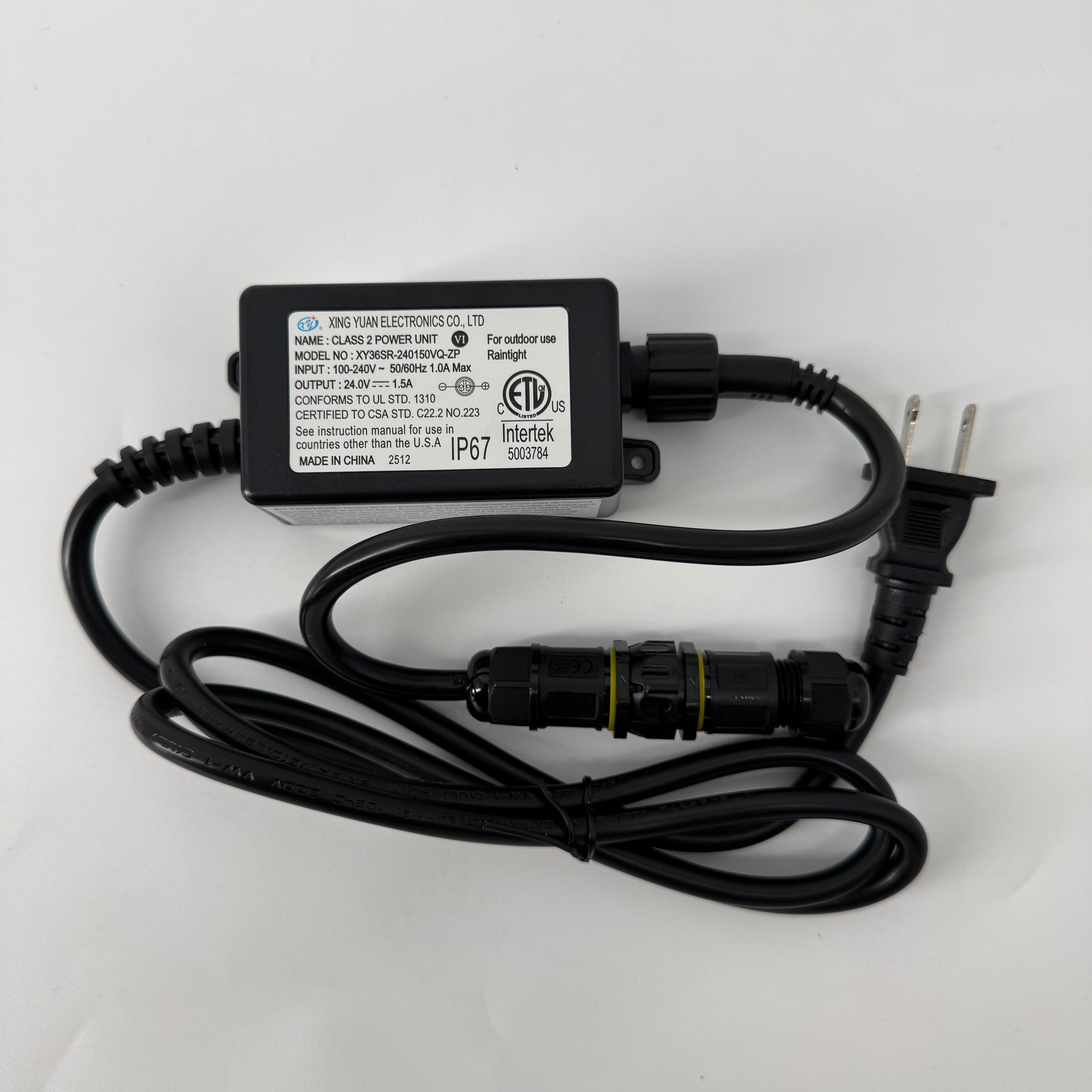

Connect the driver

Plug the driver into any standard 100–130V AC outlet, then plug the power-on connector into the driver. One driver feeds the whole run from a single end.

Under 6m? The 36W driver is plenty. Going longer, step up to 72W.

06

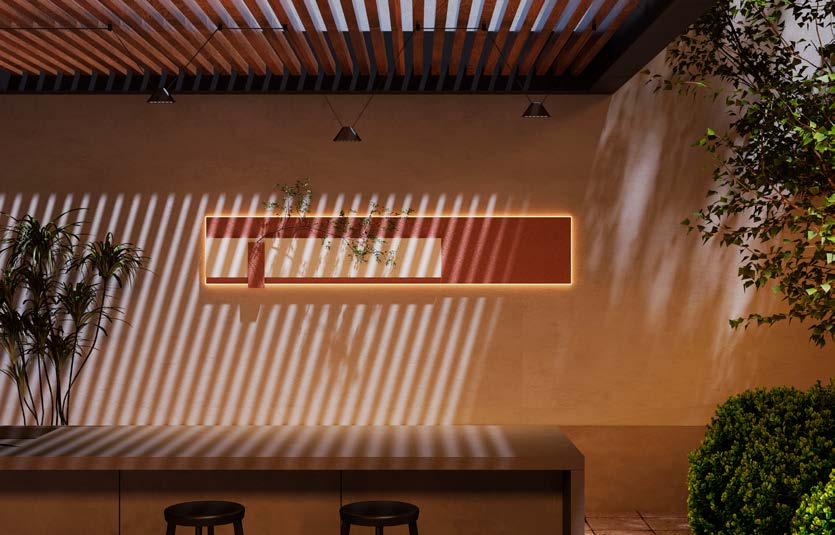

Test & adjust

Power on. Every fixture should glow a warm 3000K immediately. If one stays dark, unclip it and re-seat the clip squarely onto the track — that's almost always it.

Still dark after re-seating? Swap it onto a known-good spot to check the fixture.

Did you know?

It's 24V. It's safe to touch.

Safe for children and pets

DC24V cannot cause electric shock — handle it freely.

Waterproof to IP65

Sealed against rain and dust for year-round outdoor use.

No exposed copper

Every connection is sealed — no bare conductor anywhere.

Something off?

Troubleshooting.

Unclip it and re-seat the clip squarely onto the track so both contacts meet the conductors. If it still won't light, move it to a spot you know works to tell the fixture apart from the position.

Color Bridge cuts to length between fixture positions — seal the cut end with a DC001 end cap. LNT rail is cut to size during sectioning. Always cut with the power disconnected.

Clip new fixtures onto any free length of track, up to your driver's wattage. Tally the watts; if you're near the 36W ceiling, step up to the 72W driver or add a second run.

A faint hum can be normal under load. Loud buzzing usually means the run exceeds the driver's rating or the outlet is marginal — move to a 72W driver and a clean outlet.

Yes. Split a long layout into two runs, each fed by its own driver from its own end. Keep each run within its driver's wattage rather than chaining drivers in series.

Use the sealed power-on connector and DC001 end caps — every junction is IP65 by design. Point cable entries downward so water sheds away, and leave slack so nothing pulls taut.
